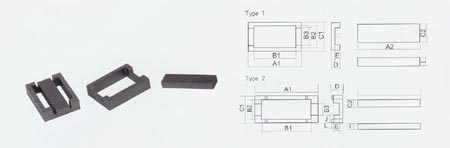

UI CORES |
 |
| CORES |
DIMENSIONS(mm) |
| A 1 |
A 2 |
B 1 |
B 2 |
B 3 |
| UI7.7 |
19.6¡À0.25 |
19.9¡À0.3 |
17.00¡À0.2 |
5.9¡À0.2 |
3.3¡À0.1 |
| UI8.3 |
27.4 +0.55 -0.3 |
28.3¡À0.5 |
22.4 +0.5 -0.3 |
6.5 +1.5 -0.2 |
5.35¡À0.1 |
| UI8.5 |
25.00¡À0.3 |
26.0¡À0.3 |
20.1¡À0.3 |
6.1¡À0.15 |
4.7¡À0.15 |
| UI9.0 |
23.6 +0.15 -0.2 |
23.8¡À0.2 |
19.4¡À0.2 |
6.8¡À0.20 |
5.4 +0.10 -0.15 |
| UI9.8A |
23.75 +0.25 -0.2 |
24.3¡À0.3 |
19.2¡À0.3 |
7.3 +0.2 -0.1 |
5.7¡À0.15 |
| UI9.8B |
23.75 +0.25 -0.3 |
24.3¡À0.3 |
19.2¡À0.3 |
7.3 +0.2 -0.1 |
5.7¡À0.15 |
| UI10 |
24.0¡À0.2 |
24.3¡À0.2 |
19.0¡À0.15 |
7.3 +0.15 -0.1 |
5.7¡À0.10 |
| UI11.7 |
21¡À0.2 |
21.8¡À0.3 |
16.2¡À0.15 |
8.9¡À0.2 |
7¡À0.2 |
| UI14.8 |
19.7¡À0.2 |
19.9¡À0.25 |
15.6¡À0.25 |
11.4¡À0.25 |
7¡À0.25 |
| UI15 |
19.7¡À0.2 |
19.7¡À0.20 |
14.25¡À0.2 |
12.1¡À0.10 |
9¡À0.15 |
| CORES |
DIMENSIONS(mm) |
| C 1 |
C 2 |
D |
E |
I |
| UI7.7 |
7.70¡À0.2 |
2.9¡À0.15 |
2.2¡À0.05 |
1.05¡À0.05 |
1.3¡À0.05 |
| UI8.3 |
8.3 +0.2 -0.15 |
3.85¡À0.10 |
3.0¡À0.05 |
2.0¡À0.05 |
1.35¡À0.03 |
| UI8.5 |
8.5¡À0.25 |
3.40¡À0.15 |
3.35¡À0.15 |
2.05¡À0.15 |
1.9¡À0.15 |
| UI9.0 |
8.8¡À0.2 |
3.70¡À0.1 |
4.40¡À0.10 |
3.1¡À0.1 |
2.6¡À0.05 |
| UI9.8A |
9.8 +0.20 -0.15 |
4.4 +0.10 -0.2 |
3.65¡À0.08 |
2.35¡À0.15 |
2.02¡À0.05 |
| UI9.8B |
9.8 +0.20 -0.15 |
4.4 +0.10 -0.2 |
3.65¡À0.08 |
2.20¡À0.15 |
2.02¡À0.05 |
| UI10 |
10 +0.10 -0.15 |
4.5¡À0.15 |
3.90¡À0.10 |
1.2 +0.05 -0.10 |
2.3 +0.05 -0.10 |
| UI11.7 |
11.8¡À0.25 |
5.5¡À0.2 |
3.5¡À0.1 |
2.3¡À0.1 |
1.8¡À0.1 |
| UI14.8 |
14.8¡À0.25 |
5.45¡À0.25 |
4.6¡À0.1 |
2.8¡À0.1 |
2.85¡À0.1 |
| UI15 |
15 +0.15 -0.15 |
5.55¡À0.1 |
3.65¡À0.08 |
1.75¡À0.1 |
1.85¡À0.1 |
| CORES |
DIMENSIONS(mm) |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| J |
L |
Type |
C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBH1 |
| UI7.7 |
¡¡ |
¡¡ |
1 |
10.34 |
3.89 |
40.24 |
156.53 |
0.84 |
200 |
| UI8.3 |
¡¡ |
¡¡ |
1 |
9.33 |
5.19 |
53.6 |
589 |
1.55 |
250 |
| UI8.5 |
¡¡ |
¡¡ |
1 |
6.37 |
7.35 |
46.85 |
344.34 |
1.94 |
315 |
| UI9.0 |
1.7¡À0.20 |
¡¡ |
1 |
4.73 |
9.62 |
47.6 |
757 |
2.38 |
320+30%-25% |
| UI9.8A |
2.1 +0.10 -0.15 |
0.55 +0.10 -0.15 |
2 |
5.96 |
7.52 |
44.88 |
337.49 |
2.33 |
360+30%-20% |
| UI9.8B |
2.1 +0.10 -0.15 |
1.55 +0.10 -0.15 |
2 |
5.96 |
7.52 |
44.88 |
337.49 |
2.25 |
360+30%-20% |
| UI10 |
2.10¡À0.15 |
¡¡ |
1 |
5.08 |
10.5 |
49.1 |
561 |
2.7 |
350 |
| UI11.7 |
¡¡ |
¡¡ |
1 |
4.89 |
10 |
48.3 |
437 |
3 |
420 |
| UI14.8 |
¡¡ |
¡¡ |
1 |
4.6 |
10.5 |
48.7 |
585 |
5.6 |
440 |
| UI15 |
¡¡ |
¡¡ |
1 |
4.6 |
10.5 |
42.5 |
585 |
2.64 |
560 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
