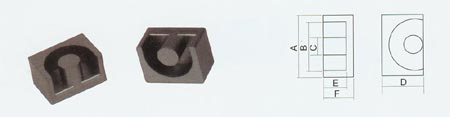

EP CORES |
 |
| CORES |
DIMENSIONS(mm) |
| A |
B |
C |
D |
E |
F |
| EP7 |
9.2¡À0.2 |
7.2¡À0.4 |
3.3¡À0.1 |
6.5-0.3 |
2.6¡À.01 |
3.8-0.1 |
| EP10 |
11.5¡À0.3 |
9.4¡À0.2 |
3.3¡À0.15 |
7.56¡À0.2 |
3.7¡À0.1 |
5.2¡À0.1 |
| EP13 |
12.5 |
10¡À0.2 |
4.35¡À0.15 |
8.8¡À0.2 |
4.69¡À0.1 |
6.52¡À0.15 |
| EP17 |
18¡À0.4 |
12¡À0.4 |
5.65¡À0.2 |
11.25-0.5 |
5.7¡À0.2 |
8.5¡À0.2 |
| EP20 |
24¡À0.5 |
16.5¡À0.4 |
8.8¡À0.2 |
15¡À0.3 |
7.2¡À0.2 |
10.7¡À0.2 |
| CORES |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBF1 |
JR3.5K |
JR7KS |
JR10KS |
| EP7 |
1.52 |
10.3 |
15.7 |
163 |
1.4 |
1000 |
1650 |
3640 |
5200 |
| EP10 |
1.71 |
12.0 |
20.4 |
244 |
2.8 |
1000 |
1300 |
3360 |
4800 |
| EP13 |
1.24 |
19.5 |
24.2 |
472 |
5.1 |
1500 |
1850 |
4200 |
7000 |
| EP17 |
0.84 |
33.9 |
29.0 |
966 |
12 |
2300 |
2800 |
|
8000min |
| EP20 |
0.51 |
78.0 |
40.0 |
3120 |
28 |
2800 |
4800 |
|
13100min |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
